Providing sorting solutions for all kinds of nuts and shells separation

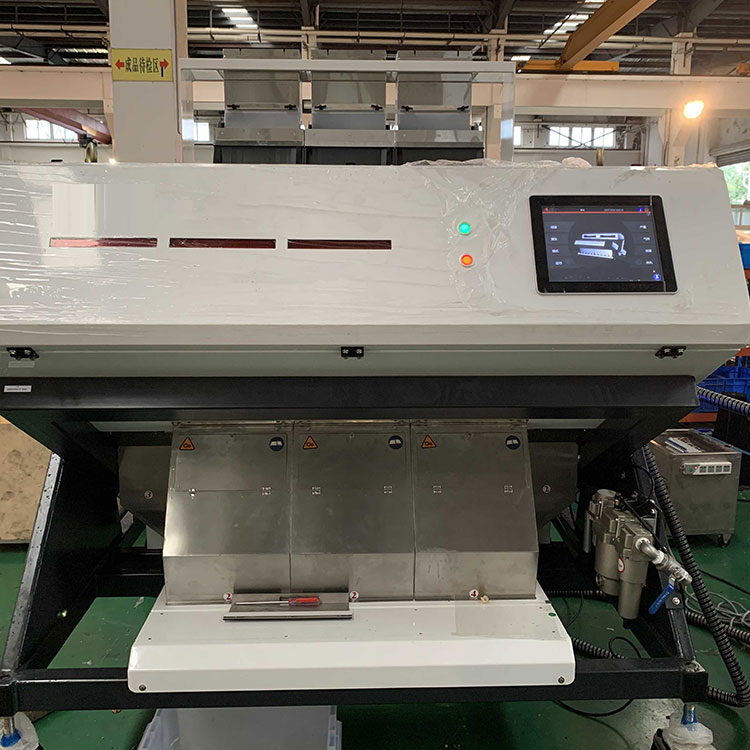

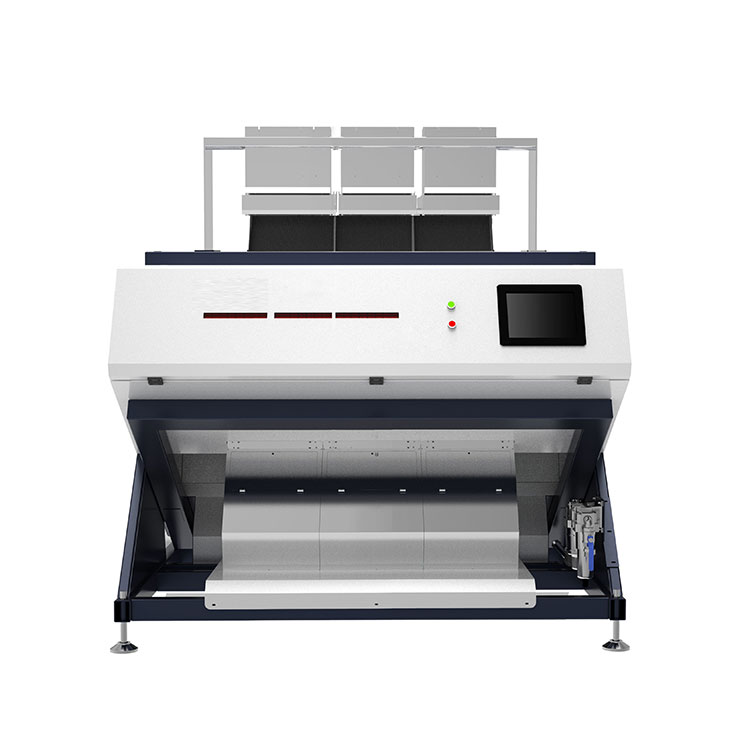

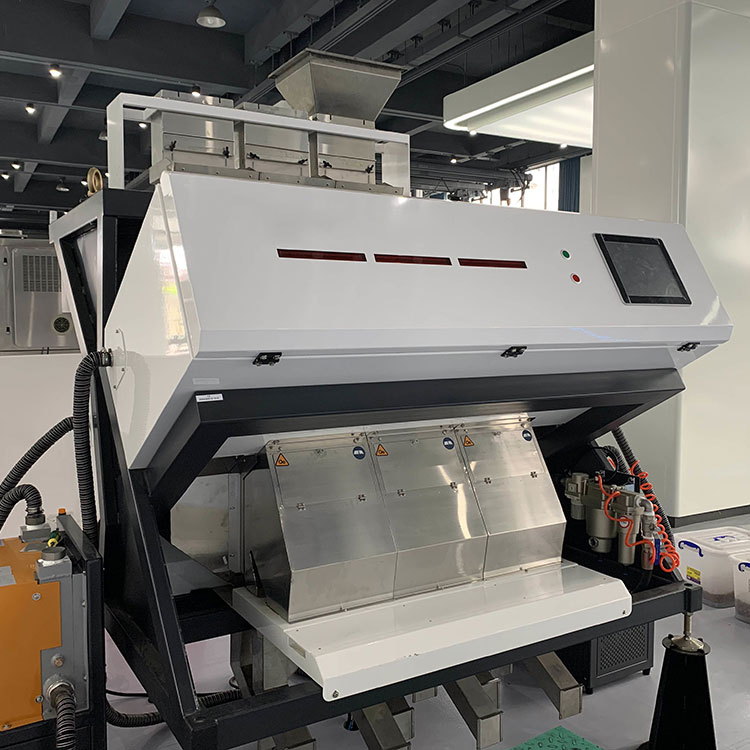

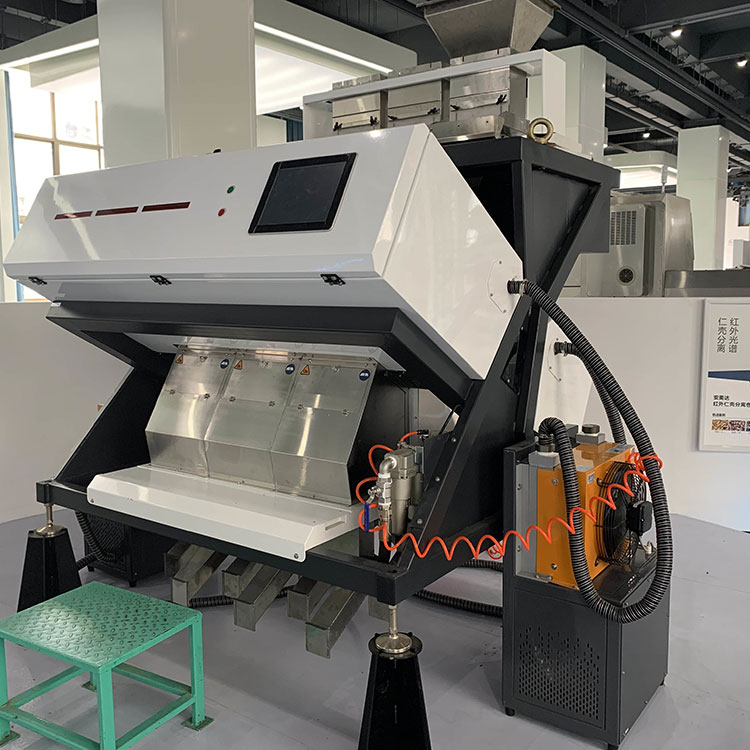

METKEY Nuts InGaAs Optical Sorter integrates advanced visible light and InGaAs invisible light sorting technologies.

I series nuts color sorter is mainly used for separate all nuts kernel and shells.
The colors of nuts and shells are similar, and it is difficult for ordinary visible light cameras to identify them. Usually infrared spectroscopy technology is used for sorting, but infrared has a week recognition effect on dark shells, so composite visible light is also required

Effective sorting applications: peach kernels, almonds, walnuts, pine nuts, almonds

Nuts InGaAs Optical Sorter Specification

Model	I1	I3	I5
Product Output(t/h)	0.5～1.5	1.5～3	2.5～4.5
Sorting Accuracy(％)	≥99	≥99	≥99
Weight(kg)	600	1028	1460
Power(kW)	2.5	3.7	5.9
Dimension L×W×H(mm×mm×mm)	1064×1707×1827	1554×1707×1827	2184×1707×1827
(Power Supply)(V/Hz)	220/50(110/60)	220/50(110/60)	220/50(110/60)

METKEY Nuts InGaAs Optical Sorter Advantages

Based on prism splitting dual-band infrared light spectroscopy technology, it can effectively realize the separation of kernel shells from various nuts such as walnuts, almonds, peach kernels, pine nuts, and hazelnuts.
Perfect integration of visible-infrared composite technology, infrared and visible light are independently set, for black objects that cannot be recognized by infrared, visible light can be eliminated simultaneously.

Equipped with a high-performance halogen lamp constant temperature cooling system, the product stability is higher, and the sorting effect is more stable

METKEY Nuts InGaAs Optical Sorter Core Technologies
