Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
How to separate the shell from the kernel if they don't have color difference?

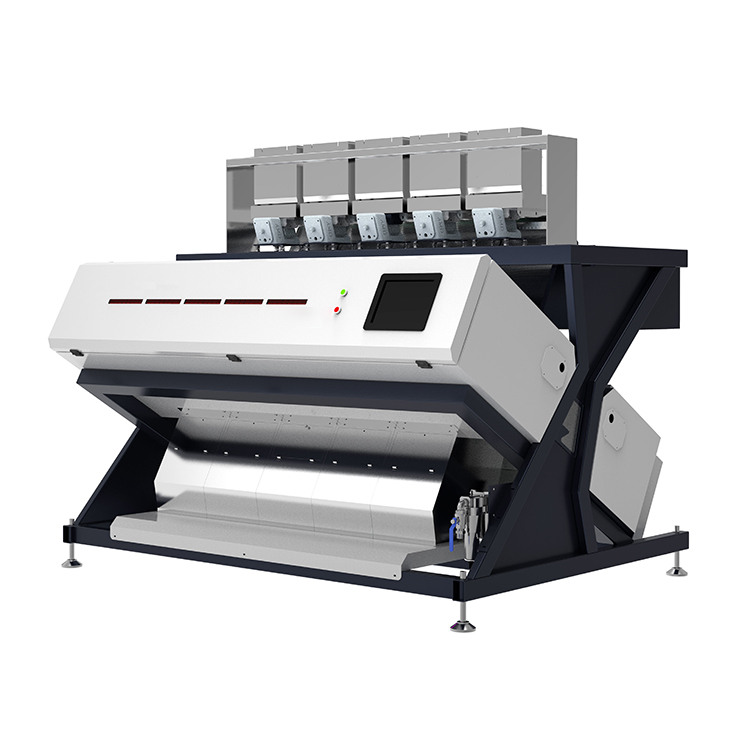

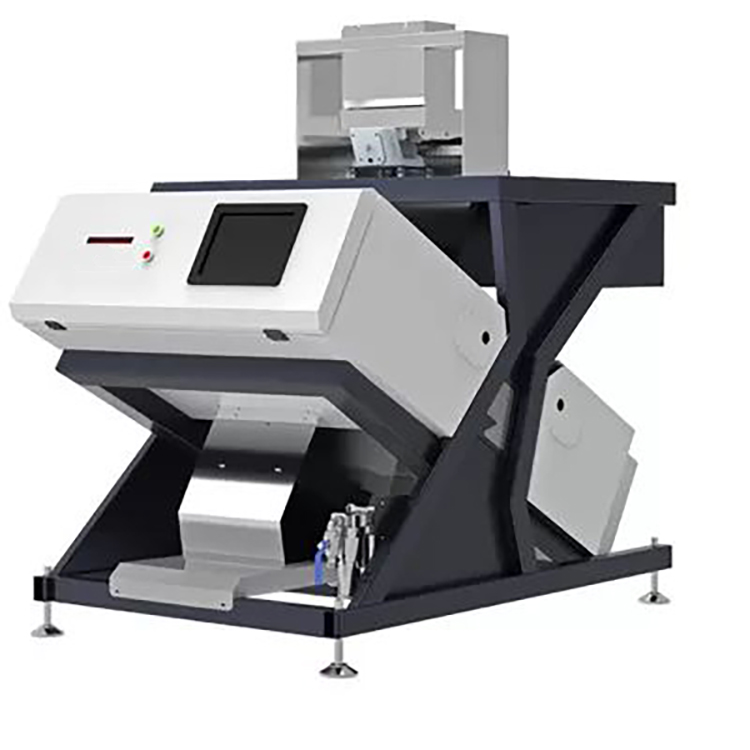

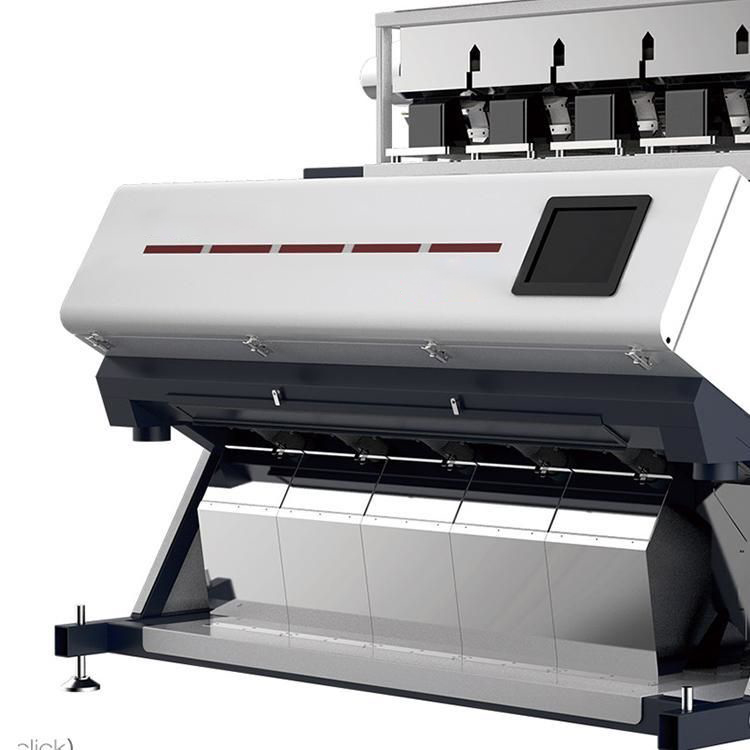

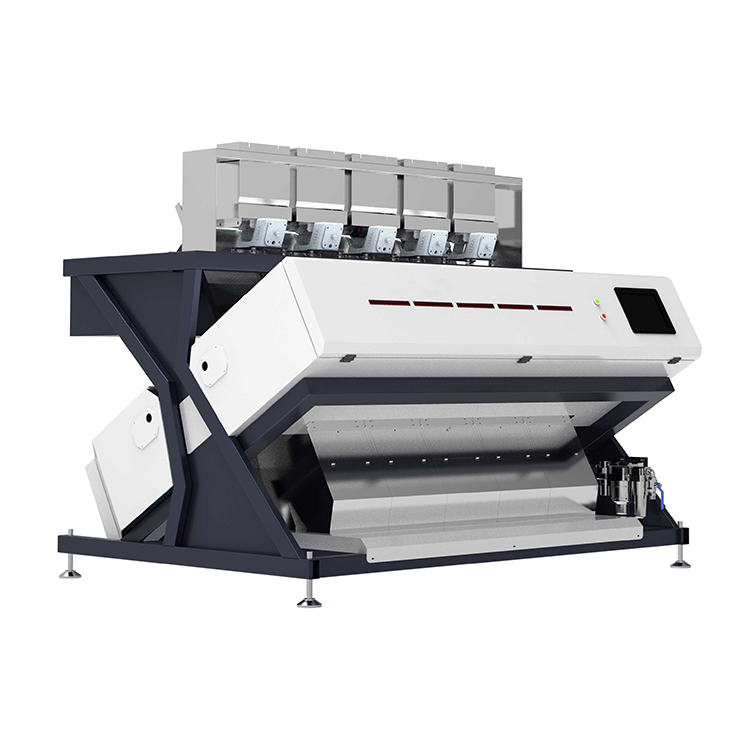

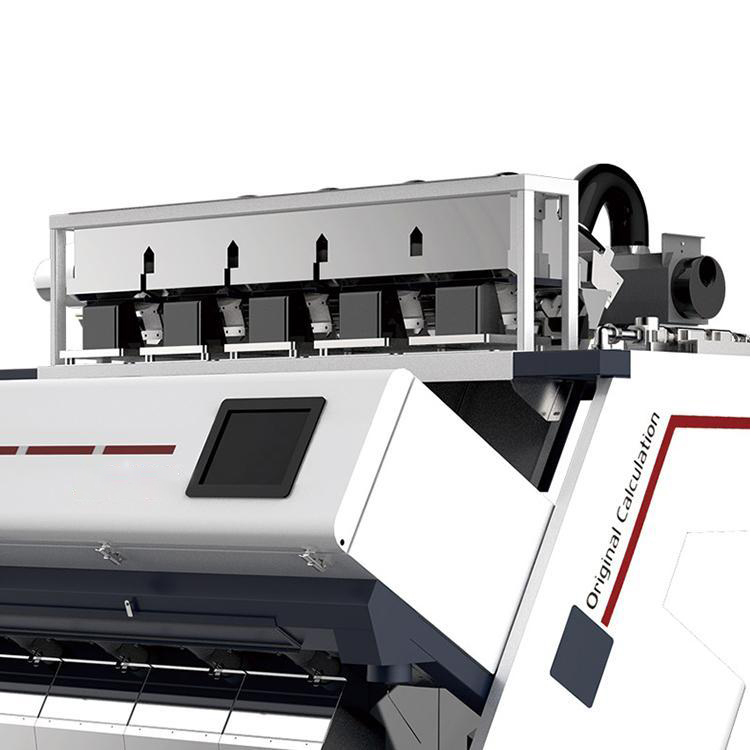

METKEY Nuts Optical Sorting Machine could offer the perfect solution.RGB with InGaAs technology - shell and foreign material removal
Enhanced InGaAs technology can detect defects which cannot be seen in the visible spectrum providing much better separation of good product from foreign material of the same colour. Product modes can be pre-defined for effective shell removal from all types of nuts.
| Model |
I1 |
I3 |
I5 |
|
Product Output(t/h) |
0.5～1.5 |
1.5～3 |
2.5～4.5 |
|
Sorting Accuracy(％) |
≥99 |
≥99 |
≥99 |
|
Weight(kg) |
600 |
1028 |
1460 |
|
Power(kW) |
2.5 |
3.7 |
5.9 |
|
Dimension L×W×H(mm×mm×mm) |
1064×1707×1827 |
1554×1707×1827 |
2184×1707×1827 |
|
(Power Supply)(V/Hz) |
220/50(110/60) |
220/50(110/60) |
220/50(110/60) |

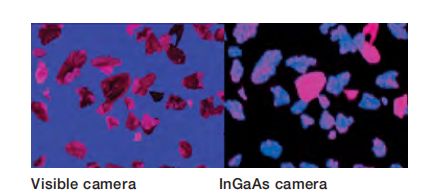

InGaAs technology enhances visibility of defects so the high-definition cameras can detect them. Visibility is enhanced even for those defects that are the same color as good products, such as sclerotia in sunflower seed.
METKEY provides sophisticated color sorting solutions for nut processors with stringent safety and quality requirement.
Our advanced optical sorting technology delivers superior performance in removing the challenging defects and foreign material from many types of nuts and dried fruit including peanuts,almonds,pistachios,
walnuts,pecans,cashews,pine nuts,hazelnuts,macadamia,Brazil nuts and raisins.
Our intelligent software that analyzes the pre-defined size, shape, and color of your product. It then removes unwanted product that does not meet these parameters. Typical applications include removing undersized, oversized, and broken particles.
Our color sorter series are suitable for different varieties and grades of pecans:in-shell and shelled,including sizes ranging from halves to pieces and colors ranging from light to dark amber.Our advanced sorting machine can remove discolored,insect-damaged,mouldy or immature kernels as well as foreign material including sticks and shell.
